People often get stuck when upgrading or replacing 7440 and 7443 LED bulbs, because the two look nearly identical, with the same T20 wedge size, the same housings in many vehicles, and no obvious difference when you hold them side by side. So the natural question follows: do they actually work the same way? Are 7440 and 7443 bulbs interchangeable, or is there a real difference between them?
They share the same wedge body but not the same wiring. The 7440 is a single-function bulb (one circuit); the 7443 is a dual-function bulb (two circuits). A 7443 can stand in for a 7440, but a 7440 can never replace a 7443. This guide breaks down the differences, the use cases, the fitment, and your LED upgrade options.

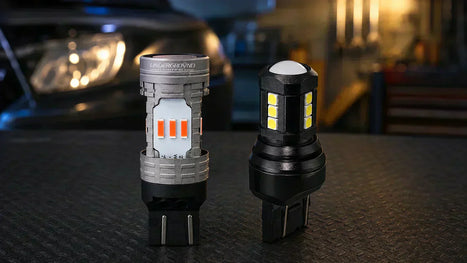

7443 vs 7440 — Core Differences at a Glance
Both bulbs use the same T20 wedge body and drop into the same style of housing, and the difference is internal. Filament count and contact count determine which functions each bulb can perform.
| Feature | 7440 LED Bulb | 7443 LED Bulb |
|---|---|---|
| Function type | Single-function bulb | Dual-function bulb |
| Base/contacts | W3x16d wedge — 2 contacts | W3x16q wedge — 4 contacts |
| Circuits | 1 circuit | 2 circuits |
| Brightness levels | One fixed level | Two levels (low + high) |
| Common applications | Turn signals, reverse lights | Brake/taillights, parking + brake setups |
| Interchangeable | Cannot replace a 7443 | Can replace a 7440 (signal only) |
| Wattage | ~3–5W LED (21W halogen) | ~3–8W LED (21W/5W halogen dual) |
The two extra contacts on the 7443 are exactly what let it run a second circuit — and they're also why a 7443 can sit harmlessly in a 7440 socket (the spare contacts simply touch nothing). A 7440 going the other way is missing both the filament and the contacts that the second circuit needs.
Are 7440 and 7443 Interchangeable?
Not fully. The two bulbs share the same wedge body and may physically fit the same socket, but their circuit designs differ, so substitution only works in one direction. A 7443 can safely replace a 7440; a 7440 cannot replace a 7443. Always confirm your socket before ordering, and when in doubt, choose the 7443.
Will a 7443 Bulb Fit in a 7440 Socket?
Yes. A 7443 physically fits and electrically functions in a 7440 socket, but it only operates on its single signal filament, and the second circuit simply goes unused. The socket energizes the signal (21W) filament; the taillight (5W) filament receives no power, and the bulb still works correctly as a turn signal or reverse light.
Will a 7440 Bulb Fit Into a 7443 Socket?
No. The single-filament 7440 can't serve a dual-circuit 7443 socket. The tail/running function has no filament to activate, so that function is completely absent, not just dimmer.
Rule: 7443 is a safe substitute for 7440. 7440 is never a substitute for 7443. Confirm your socket type before ordering either bulb.
For example, a 2018 Toyota Camry's rear turn-signal socket (7440) accepts a 7443 LED with no issues, because the extra circuit stays unused. Install a 7440 in the same Camry's 7443 brake/tail socket, though, and the brake or tail function stops working entirely.
What Is a 7440 Bulb Used For?
The 7440 is a single-function bulb. It runs one circuit at one fixed brightness (turn signal on → bulb lights; off → bulb stays off), which makes it the standard choice for positions that only ever need a single on/off output.
Turn Signal Lights
The 7440's most common role, front or rear, clearly indicates direction when you turn or change lanes.
Reverse Lights
In many vehicles, the 7440 serves as the reverse/backup light, delivering bright white output the moment the car shifts into reverse. LED 7440 backup bulbs are one of the most popular upgrades in this size.
Brake Lights (housing-dependent)
In housings where the brake function is split onto its own bulb rather than combined with the tail light, a 7440 can act as a stand-alone brake or auxiliary signal light.
Because the 7440 runs a single circuit, it can't produce two brightness levels. If your housing needs one bulb to act as both a dim taillight and a bright brake light, you need a 7443, not a 7440.
Related Read: Advantages of using 7440 and 7443 LED bulbs for Taillights
What Is a 7443 Bulb Used For?
The 7443 handles 2–3 simultaneous functions from a single bulb, brake plus tail, or parking plus turn, making it the dominant choice in rear combination lamp assemblies. Its dual filament operates at two distinct levels: 21W full brightness for brake/signal and 5W reduced output for tail/running light. The two can activate independently or together, depending on circuit input.
Brake + Tail Combo
The 5W filament stays on with the headlights; the 21W filament activates when the brake pedal is pressed, both energized together during braking. This is the standard setup in most rear combination lamps.
Parking + Turn Signal
The 5W filament handles the daytime running or parking light, while the 21W filament flashes for turn signaling. Common in front and rear positions, where one socket handles both static and flashing duties.
Switchback DRL / turn
A white running light (5W equivalent) switches to amber when the turn signal activates. Requires dual-channel wiring and a clear lens housing, popular on trucks and modern builds for a factory-LED look.
For example, a rear taillight with a single 7443 socket: headlights on = 5W filament active (dim red tail); braking = both filaments on (bright red); turn signal = 21W filament flashing amber. One bulb, three distinct states.
What Bulbs Are Interchangeable with 7440 and 7443?
Several bulb designations share the W3x16 wedge family, but filament and contact count still govern whether a swap actually works.
| Bulb | Filaments | Interchangeable with 7440? | Interchangeable with 7443? | Notes |
|---|---|---|---|---|
| 7440 | Single (21W) | Yes — same | No — missing filament | Dedicated to a single function only |
| 7443 | Dual (21W/5W) | Yes — signal only | Yes — same | 5W tail unused in a 7440 socket |
| 7444 | Dual (27W/7W) | Yes — signal only | Yes — higher output | Slightly brighter than 7443 |
| 3157 | Dual (27W/8W) | No — different base | No — different base | Similar function, different socket |
| 1156 | Single (27W) | No — different base | No — different base | BAY15's bayonet, not wedge |
3157 and 7443 perform similar functions but use different socket bases, so don't substitute one for the other based on function alone. Always verify the base type (wedge vs. bayonet) before ordering.
Color and Legal Compliance
Match the output color to the function, as it's both a brightness and a legal requirement:
- Amber for turn signals and side markers
- Red for brake and tail lights
- White for reverse/backup lights and DRLs
Most regions (DOT in the US, ECE elsewhere) require these colors by function, so check your local lighting laws before changing bulb color.
Housing and Lens Considerations
Reflector housing requires 360° beam coverage. Most OEM taillight and signal housings use reflector bowls, so LED chip orientation is critical: a side-emitting chip pointing away from the reflector produces dim output regardless of lumen rating. Choose LED bulbs with 360° multi-chip designs for reflector housings.
Colored lenses use a white LED behind them. Red or amber lenses filter the output color, so a white LED behind a colored lens gives maximum brightness while the lens provides the required legal color. A red or amber LED behind a matching lens produces significantly dimmer output.
7443 and 7440 LED Upgrade Options — CANbus, Switchback, and Reverse
LED replacements for the 7440 and 7443 deliver 500–1,800 lumens per bulb, 2–4× brighter than OEM halogen, with instant activation and 30,000–50,000-hour lifespans.
To match the right one to your vehicle, follow our buying guide for 7440/7443 LED bulbs. Before selecting a variant, confirm two things:
- Single or dual filament required (7440 vs. 7443 socket), and
- Whether your vehicle is CANbus-equipped, LEDs draw far less current than halogen, which on 2007+ vehicles can trigger errors without a built-in resistor.
7443 Brake/Tail — CANbus Red LED
7443 socket · CANbus ready · 1,200 LM · Non-polarity
7443 Brake/Tail — CANbus Red LED is the direct replacement for rear brake and turn-signal positions. 1,200 lumens per bulb with full metal heatsinking and a non-polarity design. The built-in CANbus resistor prevents dashboard error codes on 2007+ vehicles. Plug-and-play in under 10 minutes.
7443 Front Turn — Amber/White Switchback LED
7443 socket · Anti-hyperflash · Clear lens required · Dual-color
White DRL output switches to amber turn signal when activated, all in one bulb. A built-in resistor on the turn-signal filament eliminates hyperflash. Requires a clear lens housing; 360° coverage via plasma-panel board design. Available for Ford F-150, GMC Sierra, and Dodge RAM.
7440/7443 Turn — Amber CANbus LED
7440 or 7443 · CANbus ready · Silent cooling fan
7440/7443 Turn — Amber CANbus LED is the direct replacement for turn-signal positions. A silent built-in fan activates only when the high filament is engaged, extending lifespan while holding full brightness. No wiring or splicing required.7440/7443 Reverse — High-Lumen White Backup LED
7440 or 7443 · 1,200+ LM · White · 4-side illumination
7440/7443 Reverse — High-Lumen White Backup LED is designed for reverse positions. Four-sided illumination plus a top projector lens maximizes rearward output, and full-metal heatsinking spreads thermal load for a longer lifespan than compact designs. Pairs well with backup-camera kits for better night reversing.
CANbus requirement check: LED bulbs draw 3–8W vs. halogen's 21W. On 2007+ vehicles with BCM-monitored circuits, that lower draw can trigger hyperflash or a "bulb out" warning. Built-in-resistor LEDs or external load resistors resolve this without wiring changes. Check your vehicle's year before selecting a variant.
Also Read: How Can 7440/7443 LED Bulbs Make Night Driving Safer?
Pre-Purchase Checklist — 7443 or 7440 LED Bulb
Confirm these before ordering to avoid the wrong bulb or a failed install:
- Pulled the OEM bulb to confirm single contact (7440) or dual contact (7443)
- Identified the function needed: turn signal, reverse, brake/tail, or parking/turn
- Confirmed vehicle year — 2007+ generally needs a CANbus LED to prevent errors
- Checked lens type: colored lens (use white LED) or clear lens (use amber/red LED)
- Selected a non-polarity LED design to eliminate reversal issues
- If switchback: confirmed a clear lens housing and dual-channel wiring
- Not substituting a 3157 for a 7443 — different base, not interchangeable
- If using a 7443 in a 7440 socket: confirmed a single signal filament is sufficient
- LED chip design suits the housing: 360° for reflector, projector lens for focused beam
- Not installing a 7440 in a 7443 socket — the brake or tail function will be absent
