The H10 bulb, also catalogued as 9145 and 9140, is a single-beam fog light standard engineered for low-mounted auxiliary lighting systems in cars, SUVs, and light trucks. It operates on a 12V electrical system, uses a PY20d twist-lock plastic base with an O-ring seal, and is designed to deliver a wide, low-glare beam pattern optimised for fog, rain, mist, and snow.
In its OEM halogen form, the H10 bulb typically produces ~1000–1200 lumens at ~42W, drawing approximately 3.5A, which is lower current and heat output than H11 (55W). This makes the H10 standard especially suitable for plastic fog light housings, where thermal stress and lens degradation are concerns. Beam shape, cutoff, and glare control are determined by the fog light reflector housing, while the bulb defines lumen output, colour temperature, and electrical load stability.
This Underground Lighting collection replaces halogen H10 bulbs with LED and HID fog light technologies, increasing usable output from ~1000 lumens up to 12,000 lumens per pair, depending on configuration. Explore our collections of LED Fog Light Bulbs, HID Conversion Kits (35W CANbus), and Fog Light Housing Compatibility Guides to ensure proper application and optical safety.
H10 LED Fog Light Systems (2000LM–12000LM Range)
H10 LED fog light bulbs in this Underground Lighting collection generate light through solid-state electroluminescence at a semiconductor p–n junction, enabling instant 0-second illumination, lower voltage fluctuation, and reduced power loss compared to halogen.
- H10 White LED CSP Bulbs – 2000LM (PAIR)
Use CSP (Chip-Scale Package) LEDs for a compact footprint, producing ~2000 lumens per pair at 6000K white. These are optimised for tight fog light housings where larger heat sinks or fans cannot fit. Often selected for OEM-style LED fog upgrades.

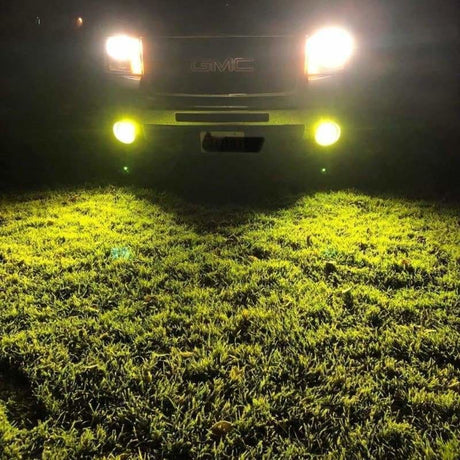

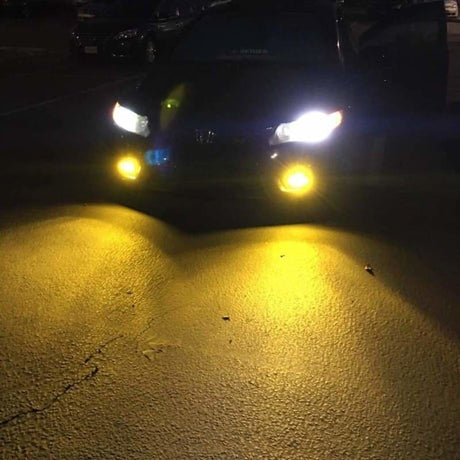

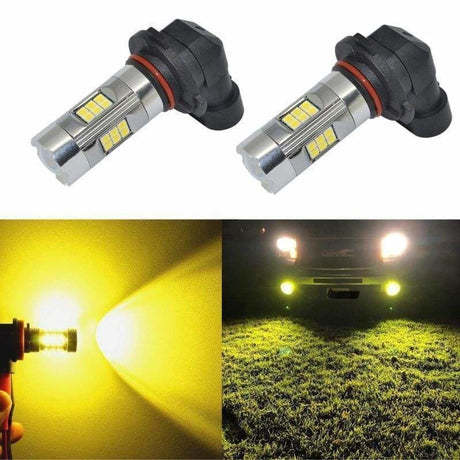

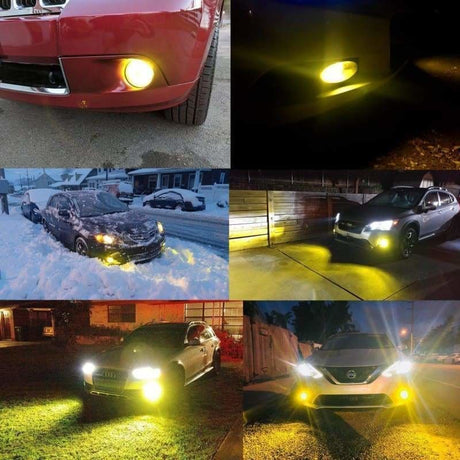

- H10 Yellow LED Fog Light Bulbs – 3200LM (PAIR)
Produce ~3200 lumens per pair at 3000K–3200K, a spectrum proven to reduce short-wavelength scatter. Yellow output improves lane-edge definition and surface contrast in fog and heavy rain.
- H10 LED Fog Light Kits – 40W 6000LM & 60W 12000LM (PAIR)
High-output LED systems delivering 6000–12000 lumens per pair, available in 6000K white and 3000K yellow. These kits provide more than 6× the output of halogen H10 bulbs while maintaining CANbus-safe electrical profiles for modern vehicles.
H10 HID Fog Light Options (3700LM Xenon Systems)
H10 HID replacement bulbs and H10 HID conversion kits generate light through an electric arc in xenon gas, enclosed in a quartz capsule. When powered by a 35W ballast, these systems produce ~3700 lumens per pair, offering strong beam penetration and longer forward reach than halogen.
- H10 HID Replacement Bulbs – 3700LM (PAIR)
Intended for existing H10 HID systems, available in 3000K yellow, 6000K white, 8000K white/blue, and 10000K blue. These require a compatible ballast and are not plug-and-play halogen replacements.

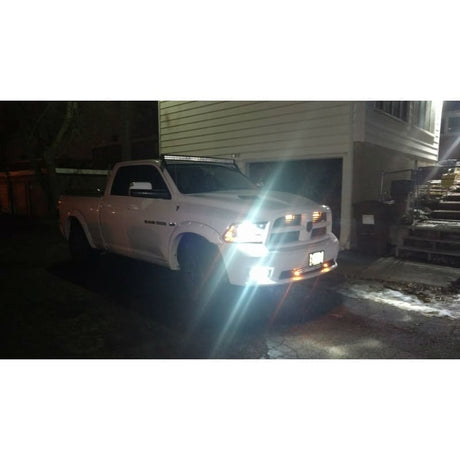

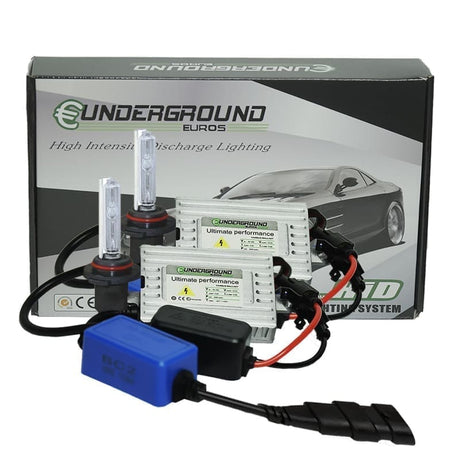

- H10 / 9145 HID 35W CANbus Error & Flicker-Free Kit (PAIR)
Complete conversion systems including xenon bulbs, electronic ballasts, igniters, and CANbus circuitry.
- Ignition voltage: up to ~23,000V
- Sustained operation: ~85V AC
- Designed for 12V passenger vehicles
CANbus integration prevents dashboard warnings, flicker, and bulb-out errors, especially in 2007+ vehicles. These kits are commonly paired with Anti-Flicker & CANbus Modules and Vehicle Fog Light Fitment Lookup tools.
