The 921 bulb (T15 / W16W wedge base) is a high-wattage 12 V automotive bulb used primarily in reverse lights, cargo lamps, and center high-mounted brake lights (CHMSL) where strong illumination is required. It uses a dual-contact wedge base that inserts directly into T15 wedge sockets, shared with 912, 906, and 922 bulbs, but the 921 variant provides the highest OEM output (~18 W halogen) within this family.
- Voltage: 12 V DC automotive
- Halogen power: ~18 W
- LED power: ~3–8 W
- Brightness: ~300–1200+ lumens
- Base: T15 / W16W wedge
- Chip types: 2835 / 3030 / 4014 SMD or projector LED
- Cooling: aluminum heat-sink or ceramic body
- Color: 6000 K white (reverse), red (brake), amber (signal)
Some models integrate CANbus load resistors, preventing bulb-out warnings or flicker in BCM-monitored circuits common in European vehicles.
This Underground Lighting collection upgrades the original 18 W filament 921 halogen to high-output T15 LED replacements (3–8 W) producing ~300–1200+ lumens depending on LED architecture. Light is generated via solid-state SMD arrays (2835, 3030, 4014) or projector-lens LEDs, delivering 3–5× halogen brightness, cooler operation, and 20,000–50,000-hour lifespan.
The collection includes:

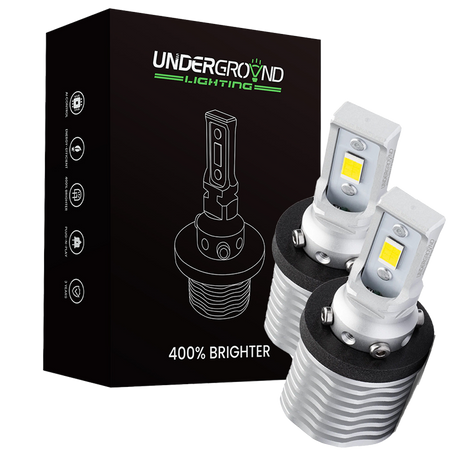

- T15 921 LED Reverse Light Bulb – Extremely Bright White
High-output 6000 K wedge LED optimized for reverse visibility and cargo illumination.
- 360-Degree Error-Free 13-SMD-5050 T10/921 LED
Multi-directional LED with integrated load resistors for uniform light spread and CANbus compatibility.

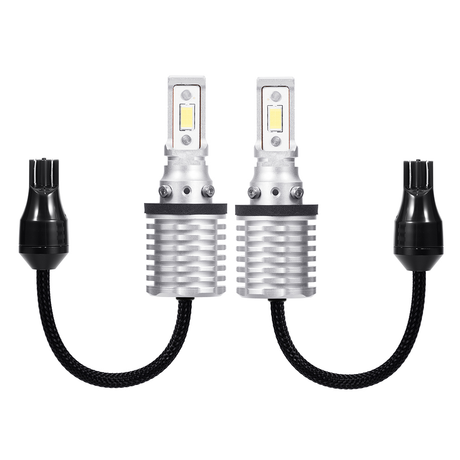

- T15 921 CANbus Projector LED Bulbs
Focused projector-tip LED producing long-throw reverse illumination with error-free circuitry.
- 921 T15 LED 10,000 LM CANbus Reverse Light Set
Ultra-high-lumen reverse lighting system for maximum rearward visibility in trucks and SUVs.
Primary 921 / T15 Automotive Applications
1. Reverse Light (Primary 921 Use Case)
High-intensity rear illumination for backing visibility. LED upgrades produce 6000 K white light with stronger ground projection, improving camera clarity and obstacle detection.
2. Cargo / Trunk / Bed Lighting
Utility lighting in hatch, trunk, or truck bed zones. High-lumen 921 LEDs significantly improve nighttime loading and access.
Center high-mounted stop lamp requiring instant illumination. LED 921 bulbs provide faster on-time than halogen, improving braking signal clarity.
4. Large Dome / RV Interior Fixtures
Used in oversized dome housings in SUVs, vans, and RVs where higher lumen output than T10 bulbs is required.
921 vs Other Wedge Bulbs — Fitment & Output
- 921 (T15): ~18 W halogen — highest output wedge
- 912: ~12 W — lower brightness
- 906: ~12 W
- 194 / T10: ~5 W — much smaller
All share the same wedge base family, but 921 bulbs are physically larger and brighter, so housing depth and clearance must be verified before LED installation.
