H9 LED & HID Headlight Bulbs

Built around the H9/PGJ19-5 single-beam headlight format, this range includes 3700LM HID replacement bulbs, a 35W CANbus HID conversion kit, and a 60W 12000LM CANbus LED pair. A standard H9 halogen is rated at 12V, 65W, and 2100 lumens, making lighting technology, electrical requirements, output, and color temperature the key differences between these upgrade options.

View as

  • 45 Day Returns

    Hassle-free & easy

  • Talk to a Specialist

    Call us (561) 918-5225

  • Free Shipping

    On orders over $99.99

  • Ships Same Day

    If order is placed before 2PM EST

2000+ Verified Reviews

With a 4.95 average rating across Google and Judge.me, Underground Lighting has earned the trust of drivers looking for dependable LED lighting upgrades. See why customers choose us for fitment support, quality products, fast shipping, and brighter lighting solutions for cars, trucks, and SUVs.

Brightest H9 Headlight Bulbs for High-Output Forward Illumination

The H9 headlight bulb is a high-output, single-beam lighting standard engineered for applications where maximum forward distance visibility is required. Operating at a 65W OEM power rating on a 12V electrical system, the H9 bulb produces ~2,100–2,300 lumens in halogen form, making it one of the brightest factory halogen headlight bulbs used in modern vehicles.

The H9 bulb uses a PGJ19-5 keyed plastic base with a right-angle 2-pin connector, which ensures precise filament or emitter positioning inside the headlight housing. This alignment is critical because beam shape, cutoff, and glare control are defined by the reflector or projector optics, not the bulb itself. H9 bulbs are most commonly installed as high beams, but select OEM projector systems also use H9 bulbs for low-beam output where higher intensity is required.

This Underground Lighting collection focuses on H9 LED headlight bulbs, H9 HID replacement bulbs, and complete H9 HID conversion kits, all designed to exceed halogen performance while maintaining electrical stability and socket accuracy. Output ranges from ~3,700 lumens with xenon HID technology to up to 12,000 lumens per pair with high-power LED systems, delivering a 20% to 400% brightness increase over standard halogen H9 bulbs.

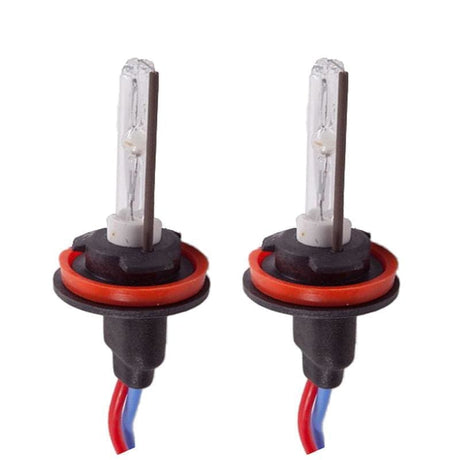

1. H9 HID Replacement Bulbs – 3700 Lumens (PAIR)

These H9 HID replacement bulbs are xenon gas-discharge arc bulbs intended for existing H9 HID conversion systems. They are published at approximately 3700 lumens and are compatible with both 35W and 55W HID ballasts.

Available color temperatures:

  • 3000K yellow – reduced glare in rain/fog
  • 6000K white – neutral, daylight-like output
  • 8000K white/blue – cooler visual tone
  • 10000K blue – cosmetic emphasis

These are replacement HID bulbs rather than a complete halogen-to-HID conversion system. A compatible 35W HID ballast or 55W HID ballast must already be installed.

2. H9 CANbus 35W HID Conversion Kit – Error & Flicker Free (PAIR)

This H9 HID conversion kit upgrades a compatible halogen H9 system to HID using a complete CANbus-integrated package:

  • Two H9 xenon bulbs
  • Two true 35W CANbus ballasts
  • Integrated CANbus load-management electronics

Verified electrical specifications:

  • 12V vehicle circuit
  • 35W system rating
  • 3700LM published output
  • Plug-and-play electrical configuration
  • 2-year warranty

The CANbus electronics are designed to communicate with compatible vehicle lighting systems and help address common conversion issues such as dashboard bulb warnings and flicker.

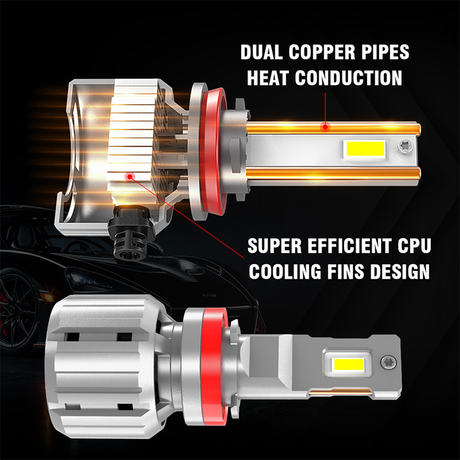

3. H9 60W 12000LM CANbus LED Headlight Bulbs Kit (PAIR)

This H9 LED headlight kit delivers up to 12,000 lumens per pair at 60W system power using high-output LED emitters. Light is generated through solid-state electroluminescence, giving the LED system immediate light output when switched on.

Specifications:

  • 6000K white color temperature
  • 60W / 12000LM pair
  • Built-in CANbus integration
  • Adjustable socket base
  • DRL-compatible design
  • Built-in temperature sensor
  • Waterproof and shock-resistant construction
  • 2-year warranty

Color temperature options across the collection range from 3000K yellow (enhanced contrast in rain and fog), 6000K white (neutral daylight visibility), 8000K white/blue, to 10000K blue. This allows precise selection based on visibility needs, driving environment, and aesthetic preference, without altering the underlying beam geometry.

Compare H9 LED headlight bulbs, H9 HID replacement bulbs, and CANbus-safe H9 conversion kits by lumen output, color temperature, electrical requirements, and housing compatibility before choosing the appropriate H9 upgrade.

Don't miss our wide selection of fog lights, turn signal lights, and switchback turn signals. Use the bulb finder to find your perfect match.

Why Choose Underground Lighting H9 Headlight & Fog Light Bulbs

  • 20–400% Brightness Increase

    Underground Lighting H9 upgrades span 3700LM (HID) to 12000LM (LED) compared with ~2300LM halogen.

  • Weather-Resistant Performance & Long-Range Highway Visibility

    Underground Lighting H9 headlight bulbs are built with durable, weatherproof materials for consistent performance in rain, snow, and extreme temperatures. H9 bulbs are optimized for high-beam distance projection, not wide fog dispersion.

  • Easy Installation & Instant LED Response

    Underground Lighting H9 LED and HID bulbs are designed as direct plug-and-play replacements with easy DIY installation, fitting standard H9 sockets without requiring modifications. LED H9 kits reach full output instantly, while HID warm-up takes 3–5 seconds.

  • Energy Efficiency & CANbus-Safe Electrical Load

    Underground Lighting H9 LED headlight bulbs consume less power than factory bulbs while delivering outstanding brightness. Integrated load management helps prevent ECU faults in modern vehicles.

  • OEM Socket Accuracy

    Underground Lighting H9 bulbs provide accurate socket fitment, with LED technology significantly outlasting halogen replacement bulbs. H9 bulbs offer up to 20,000 hours of performance, while the PGJ19-5 keyed base ensures correct alignment and secure locking.

  • Improved Visibility & Safety in Multiple Color Temperature Options

    Underground Lighting H9 LED headlight bulbs produce a powerful focused beam that improves road visibility at night. 3000K–10000K options support visibility-focused or aesthetic builds.

How to Choose the Right H9 Headlight Bulb for Your Car

Start by confirming that your vehicle actually uses an H9 bulb in the intended lighting position, then choose the technology that matches the existing system and your electrical setup.

  • Confirm H9 fitment: Check the owner's manual, original bulb marking, or Vehicle Finder.
  • Already running HID: Use the 3700LM replacement bulbs with a compatible 35W or 55W ballast.
  • Converting halogen to HID: Choose the complete 35W CANbus HID kit rather than HID bulbs alone.
  • Choosing LED: The 60W LED pair provides 6000K white output and a published 12000LM rating.
  • Check vehicle electronics: CANbus-equipped or monitored circuits may require compatible load-management electronics.
  • Check housing space and alignment: Make sure the replacement can seat correctly and maintain the intended beam position.

Watch these helpful Underground Lighting videos for step-by-step guidance, product details, and real-world installation tips.

Find the Right H9 Bulb for Your Vehicle

Vehicle Part Search

Call us at (561) 918-5225 or Send an Email

H9 Headlight Bulb FAQs

H9 bulbs are primarily designed for high beams. They produce a bright and focused light output ideal for long-range visibility. Unlike low-beam bulbs with a shield to reduce glare for oncoming drivers, H9 bulbs provide an unrestricted beam pattern for maximum illumination. Some vehicles may use them in other applications, like fog lights, but they aren’t typically intended for low-beam use.

H9, H8, H11, and H16 bulbs are all single filaments that share the same base design and can often fit into each other’s sockets. However, they have different wattages and intended applications.

H9 bulbs operate at 65W and are primarily used for high beams, whereas H8, H11, and H16 bulbs have lower wattages for fog lights or low beams. Always check your vehicle’s specifications and wattage requirements before swapping these bulbs to make sure you get proper function and avoid overheating or electrical issues.

Yes! H9 LED bulbs are designed as direct replacements for halogen headlight bulbs, offering improved brightness, longer lifespan, and better energy efficiency.

While H9 and H11 bulbs may look similar, they have different applications. H9 bulbs are typically used for high beams, while H11 bulbs are commonly found in low-beam headlights. Ensure you choose the correct bulb type for your vehicle.

Most H9 LED bulbs are plug-and-play and do not require additional wiring or modifications. However, some vehicles may need a CANBUS decoder to prevent flickering or error messages.

H9 and 9005 bulbs may appear similar but aren’t directly interchangeable. H9 bulbs are single-filament bulbs designed for high-beam applications, while 9005 bulbs have a different wattage and base design and are often used in high beams or fog lights. Some modifications may help them to fit, but it isn’t recommended as it can affect beam pattern and performance.
