LED Load Resistors & Anti-Flicker CANbus Decoders for Error-Free Lighting

This Underground Lighting collection covers LED load resistors, anti-flicker resistor decoders, and CANbus decoder modules designed to stabilise LED and HID lighting upgrades in vehicles equipped with bulb-monitoring or pulse-controlled electrical systems. These components are installed in line with the lighting circuit to resolve issues such as hyperflash, flickering, strobing, pulsing, and dashboard “bulb out” warnings.

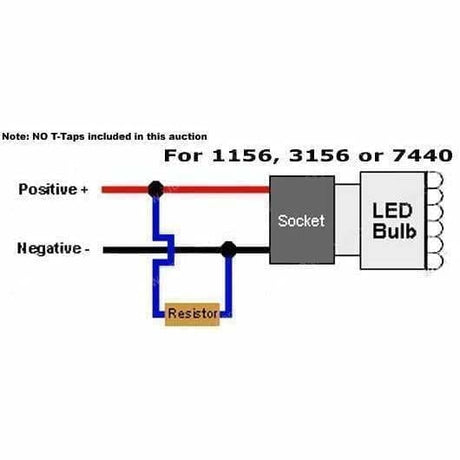

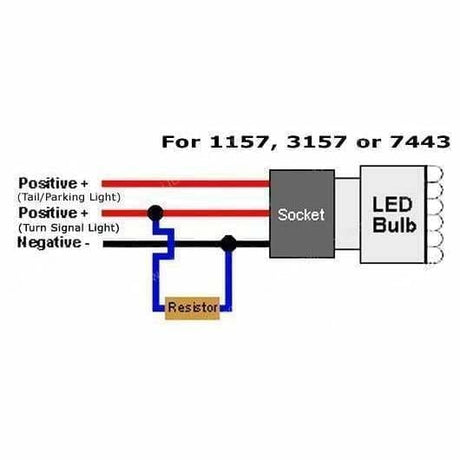

A load resistor simulates the electrical draw of a traditional halogen bulb by emulating a resistive load—commonly 6 ohms at 50 watts—allowing the vehicle’s lighting control system to detect expected current feedback. This function is critical when replacing incandescent turn signals or brake lights with LEDs, as LEDs consume significantly less power. Improper load detection typically affects turn signal circuits, where blink rate is regulated by current draw.

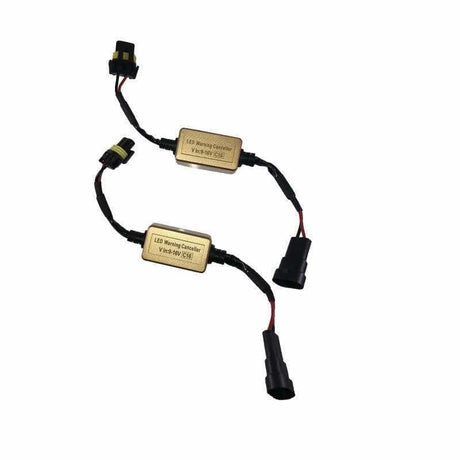

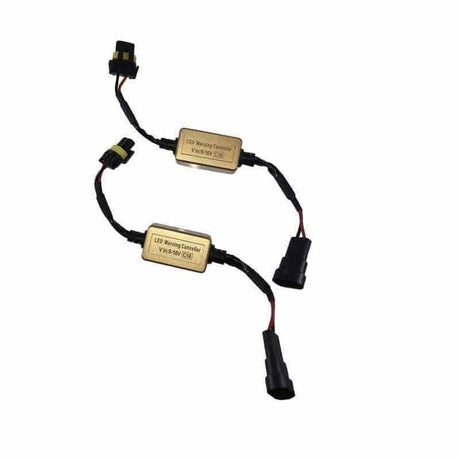

More advanced vehicles use CANbus-based diagnostics and pulse-width modulation (PWM) to monitor and control exterior lighting. For these platforms, CANbus decoder modules combine resistive load simulation with signal conditioning and voltage stabilisation, preventing flicker caused by PWM dimming and eliminating ECU fault codes. These modules interface directly with the vehicle’s body control module (BCM) and are commonly required when installing LED headlights, LED fog lights, or HID conversion kits.

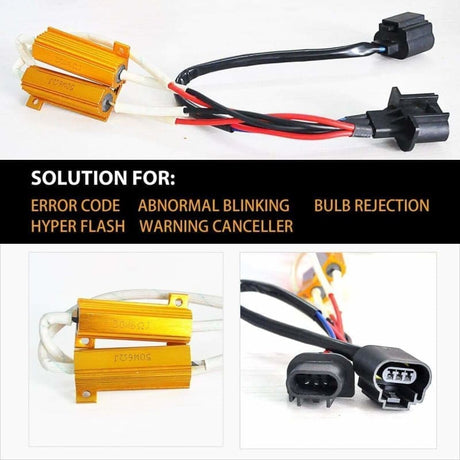

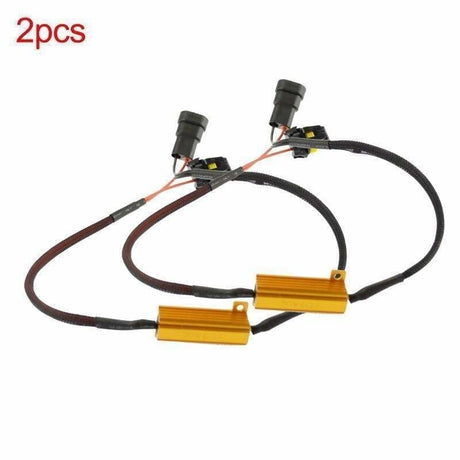

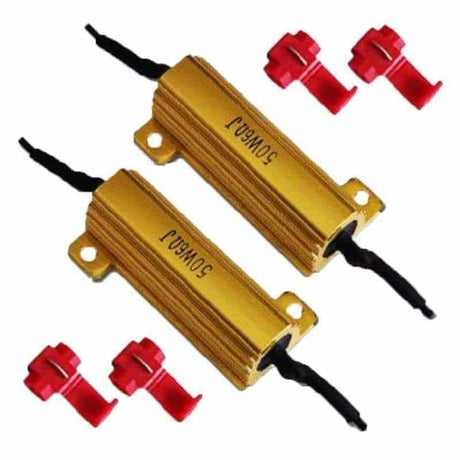

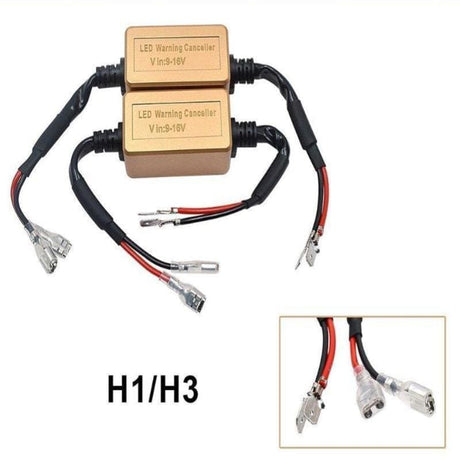

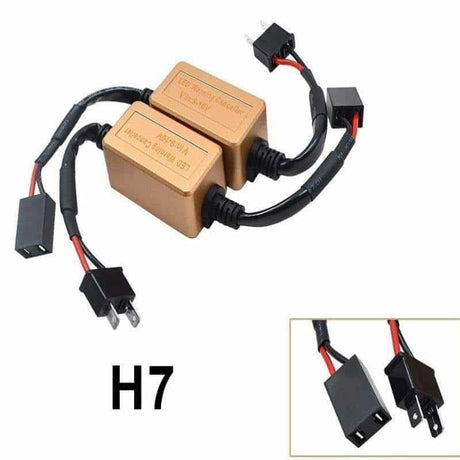

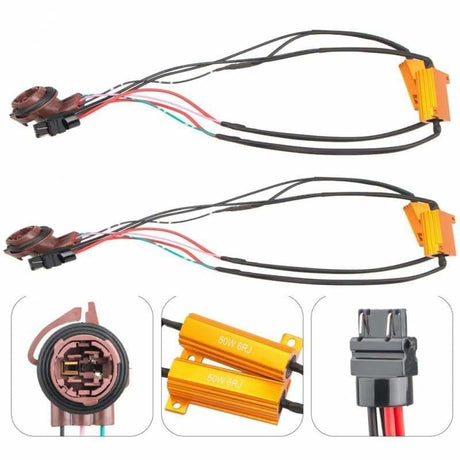

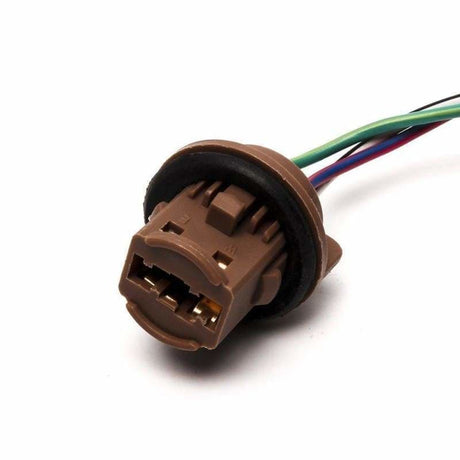

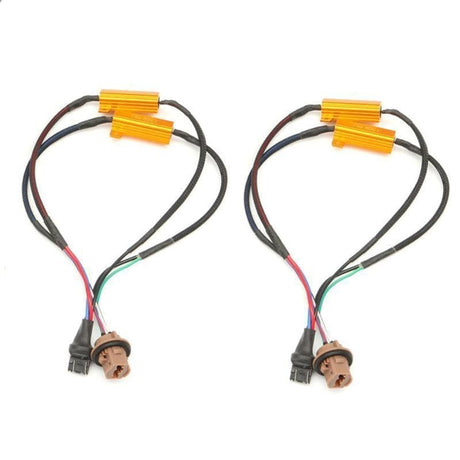

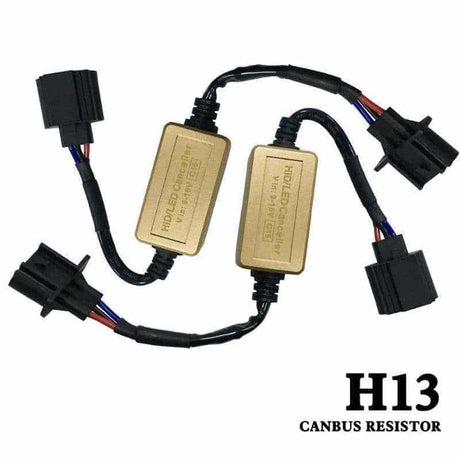

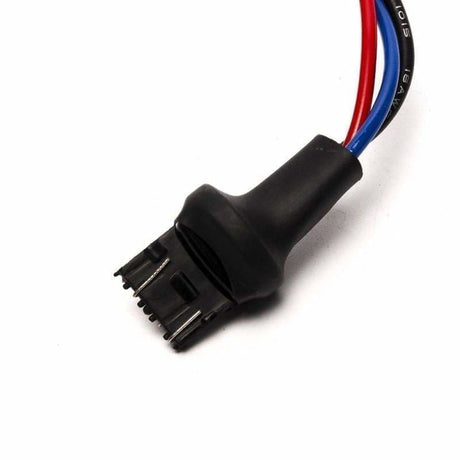

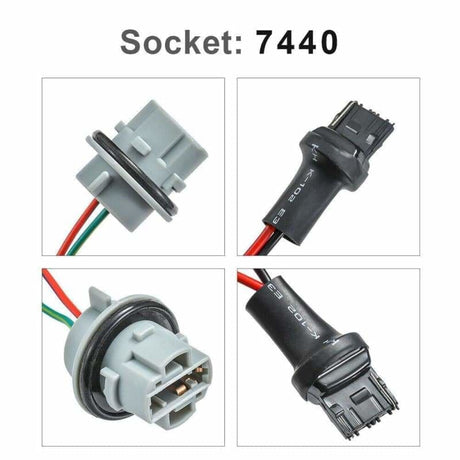

The collection includes plug-and-play resistor harnesses for signal bulbs such as 3157 and 7440/7443, along with vehicle-side anti-flicker decoders for headlight bases including H1, H3, H7, H8, H9, H10, H11, H13, 9005, 9006, 9012, and H16. Universal options such as 50W 6-ohm aluminium load resistors are also included for custom or older 12-volt systems without moulded connectors.

Because resistors dissipate unused energy as heat—often reaching 180–220°C under load—proper installation is mandatory. All inline resistors must be mounted to a metal surface away from plastic, wiring insulation, or trim. Plug-and-play CANbus modules reduce installation complexity by enclosing resistive and filtering components in sealed housings, making them suitable for engine bays and exposed locations.

Within the broader upgrade path, these components integrate directly with LED turn signal bulbs, LED brake and tail lights, LED headlight kits, LED fog light upgrades, and aftermarket HID systems, where electrical compatibility is required for reliable operation and inspection compliance.
