A dim, flickering, or dead headlight usually comes down to one of two things: the bulb itself or the circuit feeding power to it. A multimeter helps you separate those problems in a few minutes instead of guessing and replacing parts blindly.
There are two simple checks you can do. First, test the headlight bulb with a multimeter using continuity to see if the filament is still intact. Then, if the bulb checks out, test the headlight socket or connector with a voltage test to confirm power is reaching the bulb.
Signs Your Headlight Bulb May Be Bad
You may need to test the bulb if you notice any of the following issues:
- One headlight is completely out due to burn-out
- The light output is dimmer than normal
- The bulb flickers while driving
- The headlight works sometimes, but cuts out randomly
- High beam works, but low beam does not, or the other way around
These symptoms can point to a blown bulb, but they can also come from a bad fuse, weak ground, damaged connector, or corroded socket. That is why testing matters before you order a replacement.
What Tools You'll Need + Safety First
You only need a few basic items:
- Digital multimeter
- Protective gloves
- Owner’s manual or bulb guide
- Microfiber cloth or contact cleaner if the socket looks dirty
Before you start, turn the engine and headlights off. Let the bulb cool down, especially if it is halogen, because the glass can get very hot. Wear gloves when handling the bulb so oil from your skin does not get on the glass.
Important safety note: Do not probe HID or xenon bulbs the same way you test a halogen filament bulb. HID systems use high voltage, and the bulb/ballast setup needs a different testing approach.

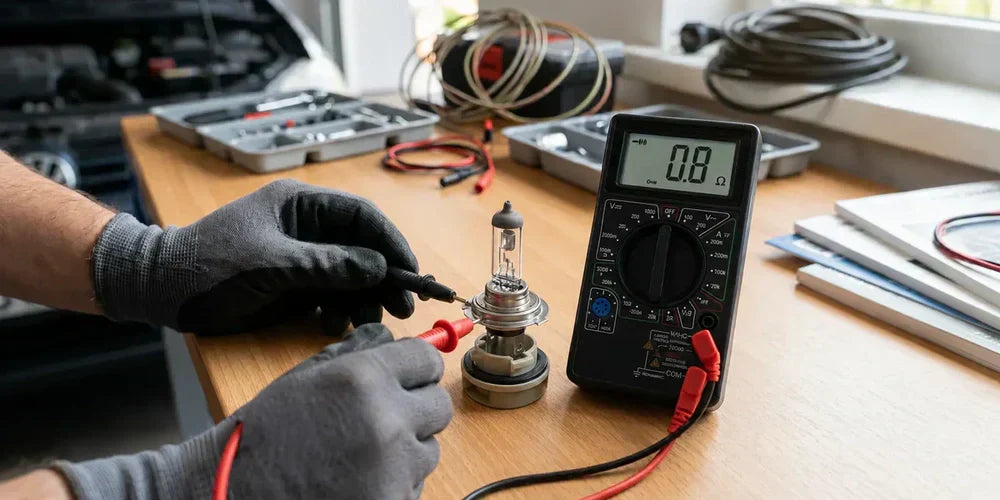

How to Test the Headlight Bulb With a Multimeter: Continuity Test
This test works best for halogen headlight bulbs because they use a physical filament inside the bulb. If the filament is broken, the circuit is open, and the multimeter will show it.
-
Remove the bulb: Make sure the engine and lights are off, then unplug the headlight connector and remove the bulb from the housing.
-
Set the multimeter to continuity: The continuity setting usually has a sound-wave or diode-style symbol. If your meter does not have continuity, set it to the lowest resistance range, such as 200 Ω.
-
Test the meter first: Touch the two probes together. The meter should beep or show a very low resistance reading. This confirms the multimeter is working.
-
Touch one probe to each bulb contact: Place one probe on one metal contact at the bulb base and the second probe on the other contact.
-
Read the result: A beep or a low-ohm reading usually means the filament is intact. If the multimeter shows “OL,” “1,” or infinite resistance, the filament is open, and the headlight bulb is bad.
For a standard single-filament halogen bulb, that is the main test. If you see OL on the headlight bulb resistance test, replace the bulb.
Testing Dual-Filament Bulbs: H4, 9004, 9007
Dual-filament bulbs are slightly different because one bulb handles both low beam and high beam. Common examples include H4 bulbs, 9004, and 9007.
These bulbs usually have three terminals: one common ground, one low-beam terminal, and one high-beam terminal. You need to test each filament separately.
- Set the multimeter to continuity or the lowest-ohm range.
- Identify the common ground terminal using your bulb diagram or owner’s manual.
- Touch one probe to the common terminal.
- Touch the other probe to the low-beam terminal.
- Check for a beep or low resistance.
- Repeat the test between the common terminal and the high-beam terminal.
If one filament reads well and the other shows OL, that explains why only the low beam or high beam stopped working. In that case, replace the bulb even if one side of it still lights up.
How to Test the Headlight Socket, Connector & Wiring: Voltage Test
If the bulb tested good, the problem is probably in the circuit feeding the bulb. This is where a headlight socket voltage test helps. You are checking whether the connector is actually delivering power when the headlights are turned on.
- Leave the bulb removed from the socket.
- Set the multimeter to DC volts. Use the 20 V range if your meter is not auto-ranging.
- Turn the headlights on.
- Touch the red probe to the power terminal inside the headlight connector.
- Touch the black probe to a clean metal ground on the vehicle.
- Read the voltage.
- Test the low-beam and high-beam terminals separately if the connector has multiple power terminals.
Here is how to interpret the reading:
- ~12–14 V: Power is reaching the bulb. If the bulb still does not work, the bulb may be bad under load, the socket contact may be loose, or the connector may be corroded.
- Below ~12 V: You may have a weak ground, damaged wiring, corrosion, or a loose connection causing a voltage drop.
- 0 V: Start checking the fuse, relay, headlight switch, wiring, or control module depending on your vehicle.
If you are trying to check if a headlight socket is bad, also inspect the terminals. Burn marks, green corrosion, melted plastic, or loose pins can stop a good bulb from working even when the rest of the circuit is fine.
Related: Everything You Need to Know About CK and Standard Wiring
Testing Different Bulb Types: Halogen vs. LED vs. HID
The continuity test works well for filament bulbs, but not every headlight bulb is built the same. Halogen, LED, and HID bulbs need different testing methods.
Halogen Bulbs: H1, H4, H7, H11, 9005, 9006
Halogen bulbs use a filament, so the continuity test above is the main way to test them with a multimeter. If you get a beep or low resistance, the filament is intact. If you get OL, the filament is blown.
For replacement, match the exact bulb number you removed. Common options include H1, H7, H11, 9005, and 9006.
LED Bulbs: 12 V
A 12 V LED headlight bulb is different because it usually has driver circuitry built into the bulb or attached to the wiring. Because of that, probing the pins with continuity does not give a clean pass/fail result as it does on a halogen bulb.
The more reliable way to test an LED headlight bulb is to bench-test it with a 12 V power source. If the bulb lights brightly and consistently, the bulb is likely good. If it does not light, lights weakly, or flickers during a proper 12 V test, the bulb may be bad.
You should still test the headlight connector with a multimeter. If the socket is delivering around 12–14 V and the LED bulb does not light, the issue is more likely with the bulb or its driver. If the socket has low voltage or 0 V, do not blame the LED bulb yet.
HID / Xenon Bulbs: D1S, D2S, D3S, D4S, D5S
HID and xenon bulbs, including D1S, D2S, D3S, D4S, and D5S, are not tested like standard halogen bulbs. A HID bulb does not have a simple filament that you can check with a normal continuity test. It needs a ballast to ignite the bulb and maintain the arc inside it.
Be careful here. HID systems can create very high voltage during ignition, so do not probe the HID bulb or ballast output casually with a standard multimeter. In most HID headlight problems, the real question is whether the bulb, ballast, wiring, or connector has failed.
If you are working on an HID system and are not sure whether the bulb or ballast is the problem, here is how to diagnose a bad HID xenon ballast or bulb.
A practical way to narrow it down is to swap the HID bulb from one side to the other if both sides of the vehicle use the same bulb type. If the problem follows the bulb, the bulb is likely bad. If the same side stays out, the ballast, wiring, connector, or fuse may be the issue.
For replacement, match the exact D-series bulb number you removed, like D1S, D2S, D3S, D4S, or D5S, because these HID bulb types are not interchangeable.
What Your Multimeter Reading Means
| Multimeter Reading | What It Usually Means | What To Do Next |
|---|---|---|
| Continuity beep | The filament is intact | Test the socket voltage if the bulb still does not work |
| Low ohms | Good filament on a halogen bulb | Check the wiring or the connector if the light is still out |
| OL / infinite resistance | Blown filament or open circuit inside the bulb | Replace the bulb |
| 12–14 V at the socket | The circuit is supplying power | Check bulb fitment, socket contact, or corrosion |
| Below 12 V | Voltage drop, bad ground, corrosion, or weak connection | Inspect wiring, ground, and connector |
| 0 V at the socket | No power reaches the bulb | Check fuse, relay, switch, wiring, or module |
So, what should a headlight bulb read on a multimeter? For a halogen bulb, you want continuity or a low resistance reading. OL usually means the bulb has a blown filament.
Can You Test a Headlight Bulb Without a Multimeter?
Yes, but it is less precise. The simplest method is to swap the bulb to the working side if both headlights use the same bulb number. If the problem follows the bulb, the bulb is bad. If the same side remains out, the issue is probably the socket, wiring, fuse, relay, or ground.
For LED bulbs, a 12 V bench test can also help. For HID bulbs, side-to-side swapping is often more useful than a standard continuity test because HID bulbs need the ballast to operate.
Choosing a Replacement Headlight Bulb
If your bulb failed the continuity test, replace it with a like-for-like bulb. Match the part number you removed, such as H4, H7, H11, 9005, 9006, or a D-series HID bulb, so it fits the housing and performs as designed.
When choosing a replacement, look for correct fitment, consistent light output, the right beam pattern for your headlight housing, and a warranty. Do not choose a bulb only because it looks brighter on paper. The right bulb should fit securely, connect properly, and put light where the road needs it.
If the bulb tested good but the socket voltage was low or missing, fix the circuit problem first. Replacing a good bulb will not solve a bad ground, a corroded connector, a blown fuse, or a failed relay.
