How to Test a Headlight Bulb with a Multimeter?
Headlights are essential components of your vehicle, ensuring safety during nighttime driving and adverse weather conditions. If you're experiencing issues with your vehicle's headlight bulb, such as dim or non-functioning light, it's important to determine whether the bulb itself is faulty. One way to do this is by testing the headlight bulb with a multimeter. A multimeter is a versatile tool that can measure voltage, resistance, and continuity. In this article, we will guide you through testing a headlight bulb using a multimeter. Let's get started!
Tools and Materials Needed
Before you begin, gather the necessary tools and materials:
- Multimeter
- Headlight bulb
- Vehicle owner's manual (optional)
- Protective gloves
Safety Precautions
Safety is paramount when working with electrical components. Always wear protective gloves and ensure the vehicle is turned off before you start. This will help prevent any electrical shock or injury.
Step-by-Step Guide to Testing a Headlight Bulb with a Multimeter
1. Safety First
Turn off the vehicle's engine and remove the key from the ignition. This is a crucial step to ensure your safety throughout the testing process. By doing so, you eliminate the risk of electric shock or accidental activation of the headlights.
2. Access the Headlight Bulb
Depending on your vehicle, you may need to open the hood or access the headlight assembly from the front of the vehicle. Consult your vehicle's owner's manual for specific instructions on accessing the headlight bulb. This will guide you on the exact location and method to reach the bulb.
3. Disconnect the Bulb
Locate the headlight bulb socket and gently disconnect it from the wiring harness. This step is essential to isolate the bulb for testing. Carefully handle the socket and wires to avoid damage during the disconnection process.
4. Set the Multimeter
Set your multimeter to the resistance (ohms) mode. This mode is used to measure the continuity of the bulb's filament. Refer to your multimeter's user manual if you're unsure how to do this. Proper setting ensures accurate readings.

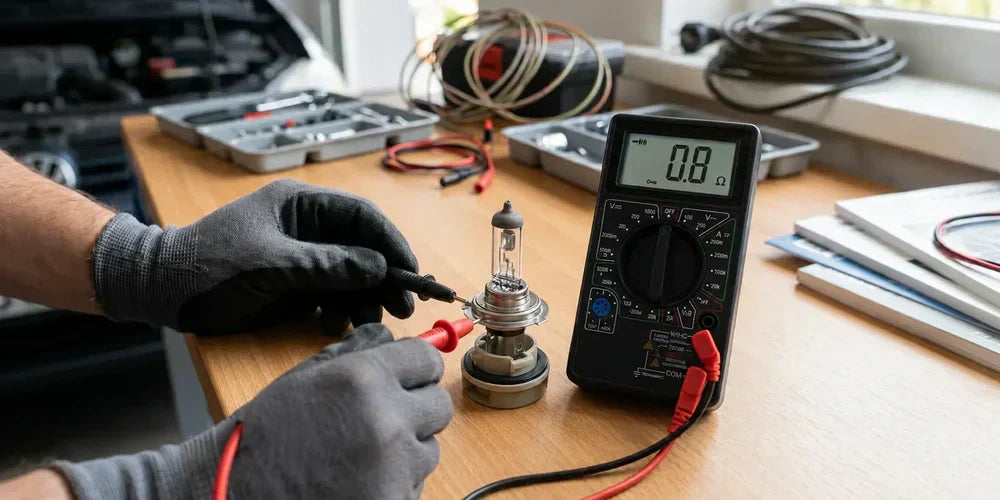

5. Test the Filament
Touch the multimeter probes to the two contacts on the headlight bulb's base where the wires were connected. The multimeter should display a resistance reading. A reading of infinite resistance (OL on the display) indicates a broken filament and a faulty bulb. A reading close to zero resistance indicates a good bulb.
6. Switch to Voltage Mode
If the resistance test indicates a good bulb, switch your multimeter to the voltage (volts) mode. This mode will help you check if the bulb is receiving the correct voltage. Ensure the multimeter is properly set to avoid incorrect readings.
7. Connect the Bulb
Reconnect the headlight bulb to the wiring harness, ensuring a secure connection. This step is crucial to prepare the bulb for voltage testing. Make sure the connection is tight to prevent any loose contact.
8. Activate the Headlights
Turn on the vehicle's headlights. This step will allow you to test the voltage being supplied to the bulb. Ensure the vehicle is in a safe and stable position before turning on the headlights.
9. Test Voltage
With the headlights activated, touch the multimeter's probes to the two contacts on the headlight bulb's base. The multimeter should display a voltage reading. A reading close to the battery voltage (usually around 12 volts) indicates a proper electrical connection.
10. Repeat the Process
Repeat the resistance and voltage tests for the other headlight bulb if necessary. This ensures both headlights are functioning correctly. Consistent testing helps identify and resolve any issues with the headlight system.
Testing headlight bulbs is a relatively simple procedure that can be done with a multimeter. If you are not comfortable doing it yourself, you can always take your car to a mechanic. However, testing your headlights yourself is a good way to save time and money, and it can help you keep your car safe on the road.
Regularly testing your headlight bulbs is crucial for maintaining vehicle safety. By following these steps, you can accurately diagnose and address any issues with your headlights.
Common Issues and Troubleshooting
Here are some common issues you might encounter and how to troubleshoot them:
-
No Reading on Multimeter: Ensure good contact between the probes and the terminals. Clean any corrosion that might be present.
-
Inconsistent Readings: Double-check the multimeter settings and ensure it's properly calibrated.
-
Bulb Appears Fine but Doesn’t Work: Check the vehicle’s wiring and connectors for any issues.
Benefits of Testing Headlight Bulb with a Multimeter
-
Accurate Diagnosis: Using a multimeter allows for precise measurement of the bulb's resistance and voltage. This helps in accurately identifying whether the bulb is functional or faulty, preventing unnecessary replacements.
-
Cost Savings: By confirming the condition of the bulb before replacing it, you can save money on unnecessary purchases. This is especially beneficial for expensive or hard-to-find bulbs.
-
Prevents Further Damage: Testing the bulb with a multimeter ensures that the electrical connections and components are in good condition. This helps in preventing potential damage to the vehicle's electrical system caused by a faulty bulb.
-
Quick and Easy: Using a multimeter to test a headlight bulb is a straightforward process that can be done quickly. This saves time compared to other diagnostic methods, allowing for faster repairs.
-
Ensures Safety: Properly functioning headlights are crucial for safe driving, especially at night or in poor visibility conditions. Testing the bulbs ensures they are working correctly, enhancing road safety for you and other drivers.
-
Helps Identify Wiring Issues: In addition to testing the bulb itself, a multimeter can help diagnose issues with the wiring or electrical connections. This comprehensive testing ensures that the entire headlight system is functioning properly.
-
Reliable Results: Multimeters provide reliable and consistent results, reducing the chances of misdiagnosis. This reliability helps in maintaining the overall health of the vehicle's lighting system.
- Professional Approach: Using a multimeter is a professional method for testing headlight bulbs, like what mechanics and technicians use. This approach ensures that you are using the best practices for vehicle maintenance.
Signs That Your Headlight Bulbs May Need to Be Tested
-
Your headlights are dim: This is the most obvious sign that your headlight bulbs may need to be replaced.
-
Your headlights are flickering: This can be caused by a loose connection, a bad bulb, or a problem with the headlight switch.
-
One of your headlights is not working at all: This could be caused by a bad bulb, a blown fuse, or a wiring problem.
- Your headlights are not pointing in the correct direction: This can be caused by a problem with the headlight alignment, or it could be a sign that one of your headlight bulbs is not working properly.
If you notice any of these signs, it is a good idea to test your headlight bulbs to see if they need to be replaced.
