1999-2014 GMC Sierra LED Front Turn Signal Bulbs With Built-in Resistor No Hyperflash (PAIR)

GMC Sierra Front Turn Signal LED Upgrade

Replace the factory front GMC Sierra turn signal bulb with a 3157 LED designed for the original lighting assembly. The bulbs fit the front turn signal application on 1999-2013 GMC Sierra 1500 and 2000-2014 GMC Sierra 2500/3500.

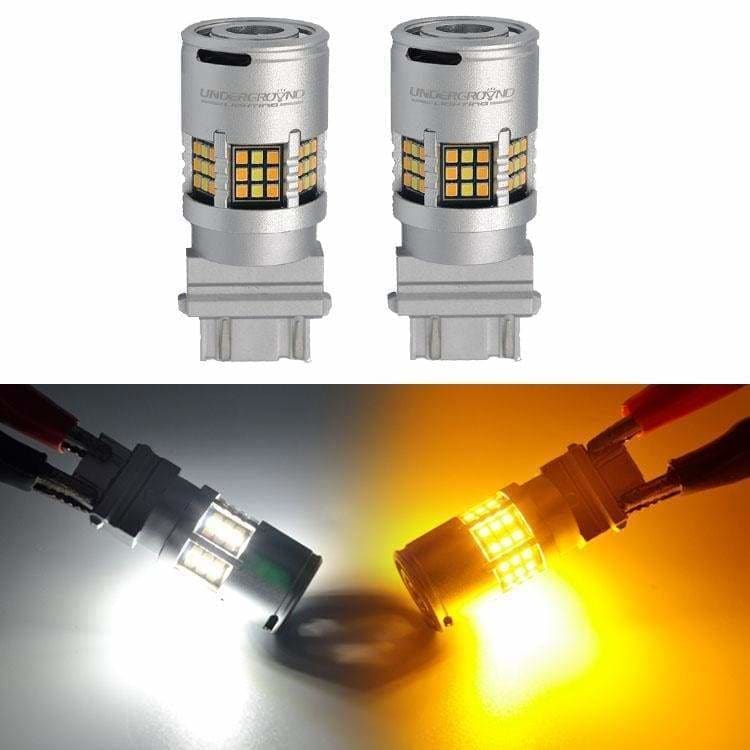

Available in amber and amber-white, this setup places 54 SMD LED chips around the bulb rather than concentrating them on one side. Each bulb produces 1200 lumens, delivering significantly higher light than typical halogen bulbs. With 360-degree coverage, light spreads evenly around the bulb, allowing the existing reflector and lens to produce a broad, consistent signal.

The bulb also manages the electrical requirements of the LED conversion internally. Its built-in resistor helps prevent hyperflash and dashboard error messages caused by LED bulbs' lower power draw. The CANBUS-compatible, nonpolar, CK-compatible design lets the bulb work with the vehicle’s monitored lighting circuit without an external resistor.

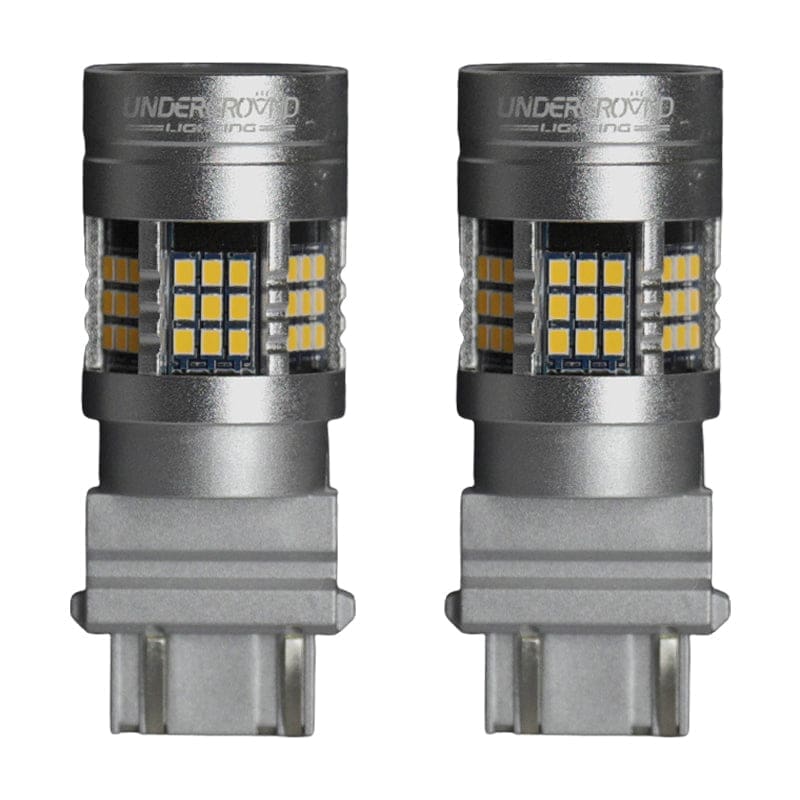

360-Degree LED Light From 54 SMD Chips

The bulb is built to work with the vehicle's existing turn signal housing, without requiring a different reflector or modified lens. Each bulb produces 1200 lumens, giving the front signal a strong LED output. Its 360-degree, multi-directional light placement feeds the factory optical assembly from around the bulb, allowing the original housing to distribute the signal through its viewing area.

The result is a lighting pattern designed around the full factory housing, rather than treating the bulb as a standalone, forward-facing light.

Built-in Resistor Cut Flickering & Hyperflash

Switching from incandescent to LED changes the turn signal circuit's electrical load. An LED's lower current draw can cause some vehicles to flash rapidly because the system interprets the reduced load as a failed bulb.

The resistor is built directly into the bulb to provide the required load and prevent hyperflash. You don't need to install a separate resistor or splice, cut, or modify the truck's wiring.

The resistor is used only on the turn signal filament. It does not add resistance to both filaments, which helps avoid unnecessary heat when that additional load isn't needed.

Full Metal Cooling With a Silent Fan

The resistor and LED components are housed with a full-metal heatsink that helps move heat away from the bulb's internal components. A silent built-in fan adds active cooling when the turn signal is operating.

The fan activates with the turn signal, providing cooling during operation when the built-in resistor is working. This combination gives the bulb both passive and active heat management without requiring an external cooling component.

CANBUS, Nonpolar and CK Compatible

The electrical design supports CANBUS, nonpolar, and CK-compatible operation.

CANBUS compatibility is useful on vehicles that monitor their lighting circuits, while CK compatibility accommodates the contact arrangement used by compatible CK sockets. The nonpolar design means you don't have to install the bulb in a specific positive-to-negative orientation.

Together, these features keep the replacement straightforward when the vehicle uses the specified 3157 application.

3157 Front Turn Signal Application

The bulb is designed around the 3157 socket, making the bulb number an important part of checking fitment before ordering. 3157 is a dual-function bulb format, so it is interchangeable with every similar-looking bulb.

For the specified Sierra applications, this bulb replaces the front turn signal and maintains the factory socket location. The physical dimensions are 2.4 inches long and 0.83 inches in diameter, which you can also check against the available space around the original bulb.

Plug-and-Play Installation

Difficulty Level: Beginner - Simple Installation for anyone

Installation takes approximately 10 minutes. The bulb installs into the factory socket without cutting, complicated wiring, or separate resistors.

Since the resistor is already built into the bulb, there is no need to find a mounting location for an external resistor or splice additional components into the turn signal wiring.

Designed in the USA

The bulbs are designed in the USA around the requirements of the specified GMC Sierra front turn signal application. The LED chips, resistor, electrical components, heatsink, and cooling fan are integrated into one replacement bulb, eliminating the need for separate parts during installation.
