35W vs 55W HID Ballasts: Which One Is Best for Your Vehicle?

For most cars, choose 35W. It's the power level factory HID systems are built around, it lets your bulbs reach their rated life, and it keeps heat and wiring load down. A 55W ballast can add some light, but it usually costs you bulb life, adds heat inside the headlight, and many ballasts sold as 55W don't actually deliver 55 watts to the bulb.

The HID ballast matters more than most people think. It's the box that turns your car's 12 volts into what a xenon bulb needs to light and stay lit, so the wattage you pick changes brightness, color, heat, and how long everything lasts. This guide explains what a ballast does, what 35W and 55W really mean, how they compare, and how to choose.

35W and 55W HID (High-Intensity Discharge) ballasts differ mainly in power output, brightness, heat, and color temperature.

What the number means: the power the ballast feeds the bulb, in watts. Factory xenon bulbs are designed for 35W.
35W: the OEM standard. Rated bulb life, lower heat, lower current draw, and the best fit for stock projectors.
55W: can add light, but with more heat, more current, shorter bulb life, and a less even beam in many headlights. Many 55W ballasts also fall short of their rating.
Legality: no law sets a ballast wattage. What counts is whether the whole headlight meets the federal lighting standard.
Our recommendation: 35W for daily drivers, which is why every ballast we sell is 35W

What Does a Headlight Ballast Do?

Bright, stable headlight output powered by a quality ballast, delivering strong visibility.

A ballast is the power controller of an HID headlight. Your car's electrical system runs on 12 volts, and a xenon bulb can't light from that. The ballast steps the voltage up, starts the arc, then holds the bulb at a steady operating power so the light doesn't flicker.

It does three jobs in order:

Ignites the bulb. A high-voltage pulse jumps the gap between the two electrodes inside the capsule. On our CANbus ballast, that pulse comes from a 23 kV igniter. Some ballasts, like the D1S and D3S types, carry the igniter built in. Others use a separate igniter box.
Settles to running power. Once the arc is lit, the voltage drops sharply. Osram rates D1S and D2S bulbs at 85 volts when running and D3S and D4S bulbs at 42 volts, which is why ballasts for those families aren't interchangeable.
Regulates the arc. The ballast keeps current steady as the bulb warms up and ages. That takes a few seconds to reach full brightness, and it's also why a weak ballast shows up as slow starts, flicker, or dim light.

Do you need a ballast for HID lights?

Yes, every time. HID bulbs can't run from a halogen circuit, so a bulb with no ballast won't light at all. If your car has factory xenon headlights, it already has ballasts. If you're building a retrofit or an aftermarket kit, the ballasts come with the kit, or you buy them separately.

What Does 35W Mean on an HID Ballast?

The number is the electrical power, in watts, that the ballast is supposed to deliver to the bulb while it's running. A 35W ballast feeds the bulb about 35 watts. A 55W ballast feeds it about 55.

35W is the standard because xenon bulbs are designed around it. Osram's factory D2S bulb, for example, is rated at 35 watts and 3,200 lumens, plus or minus 15 percent, with a B3 life of 2,000 hours, according to Osram's published specifications. Most factory xenon systems run at that level, with the newer 25-watt D5S as the main exception.

There's a catch worth knowing before you compare boxes. A ballast rating isn't always measured the same way. Diode Dynamics, a lighting retailer that publishes bench measurements, reports that cheap ballasts can be only about 60 percent efficient, so a ballast marketed as 35W may put out far less at the bulb. It also notes that some 55W ballasts are rated by input power rather than output. Another retailer, HID Concept, says most of the so-called 55W kits it has seen deliver around 38 to 40 watts. So the real gap between a 35W and a 55W ballast can be smaller than the numbers on the box suggest, and it varies a lot by brand.

35W vs 55W HID: What's the Real Difference?

More power means a bigger, hotter arc, and that one change ripples through everything else. Here's how it plays out.

Is a 55W HID brighter than 35W?

Usually a little, and less than the ads claim. Driving the same bulb harder does produce more light, but nobody has standardized how much. Retailer listings claim as much as 50 percent more light, while installer reports run lower, and you'll sometimes see "double the brightness." We couldn't find anything that supports a doubling.

Two reasons the gain is smaller in practice. First, if the ballast is under-delivering, as described above, you don't get the full 55 watts. Second, more light isn't the same as more useful light. A 35W bulb is built so its arc sits exactly where your projector's optics expect it. Push the bulb harder, and the arc grows, which installers commonly report as extra glare and a less even beam. On a road with oncoming traffic, glare can cost you more than the added output gives back.

If you want a brighter beam, there are better places to start. Fresh bulbs in a matched pair, a clean and properly aimed headlight, and a quality ballast that truly delivers 35 watts can often do more than a cheap 55W upgrade.

Does a 55W ballast change the bulb's color?

It can. A bulb pushed beyond its design power doesn't always hold its rated color. Different drivers report it washing out, looking whiter, or drifting away from the Kelvin number on the box, so the color you buy isn't guaranteed to be the color you get. If you've picked a specific shade, a 35W ballast is the safer way to land on it.

Does a 55W ballast shorten bulb life?

Yes, in most reports. Diode Dynamics says a bulb running at 55 watts will usually last about half as long as the same bulb at 35. For reference, Osram rates its factory 35-watt xenon bulbs at 2,000 hours B3 and 3,000 hours Tc. B3 is the point when 3 percent of bulbs have failed, and Tc is when 63.2 percent have. A bulb that burns out in half the time means more replacements, and you replace in pairs, so the cost doubles.

How much hotter and heavier is the wiring in a 55W ballast?

Both go up. A 55W ballast runs hotter than a 35W and needs airflow and a secure mounting spot away from heat-sensitive parts. It also pulls more current, especially in the first seconds when the arc is struck. Installers on enthusiast forums often make the same point: the real concern with HID kits isn't bulb heat, it's the load on the vehicle wiring. A 35W system is less likely to strain a factory harness than a 55W.

The heat inside the headlight matters too. Installers report that 55W bulbs have damaged plastic shrouds and sockets in compact projectors, and a few say 35W is already plenty in a small projector. Check what your headlight manufacturer allows before going higher.

Can You Use a 55W Ballast With a 35W Bulb?

Physically, usually yes, and plenty of kits do exactly that. The bulb capsule is the same either way, so a 55W ballast will light a 35W bulb. The catch is that you're overdriving it. Expect the effects covered above: more heat, more current, a shorter bulb life, and a color that may not match the label.

Some bulbs are made to handle the extra power. Our D2H replacement bulbs, for example, are rated to work with 35W or 55W ballasts. Even so, 35W is the safer pick for a daily driver, since it keeps the bulb inside its design range.

The reverse is less common but worth knowing. Giving a bulb less power than it's designed for causes slow start-up and reduced output, which is also what a weak or poorly built 35W ballast does.

Do 35W and 55W ballasts use the same plugs?

The wattage doesn't decide the plug, the ballast type does. Three setups are common:

Aftermarket ballasts with AMP connectors. These are the standard for HID kits. Our CANbus ballast uses AMP connectors and a standard power input, so it fits typical kit wiring.
OEM-style D1S or D3S ballasts. These plug into a bulb with a built-in igniter. We carry an aftermarket D1S ballast and an aftermarket D3S ballast for failed factory units. A D3S ballast is not backward compatible with D1S or D2S systems.
D2 and D4 style outputs. These feed a bulb that uses a separate igniter. If you're pairing an AMP ballast with a D2S bulb, you either need an adapter or a bulb with AMP wire leads. That's the job the D2H bulb was built for.

Whatever you choose, match the ballast to the bulb family first, then check the connector and mounting style. Our vehicle part search or a call to (561) 918-5225 will confirm the fit.

Do you need a relay harness?

It depends on the ballast and the car. Some kits include a relay harness to protect the vehicle's wiring from the extra load. Our CANbus ballast is built to run without a relay or add-on adapter on most cars, and it smooths the pulsed power many newer vehicles send to their headlights. If you buy a different ballast, check whether it expects a relay.

Will a 55W ballast damage your headlight?

Not automatically. A true 55W system isn't going to destroy a headlight in one night. The risk builds over time with heat, especially in compact projectors with plastic parts near the bulb, and with the extra load on wiring and connectors. Check the headlight manufacturer's guidance before going above 35W, and if you do, make sure the ballast has airflow, and the connectors are secure.

Are 35W and 55W HID Ballasts Street Legal?

Wattage isn't what makes a ballast legal or illegal. We couldn't find a federal or Texas rule that sets a ballast wattage, and the idea that 55W systems are banned in some areas doesn't hold up. What the law looks at is the whole headlight.

In the US, headlamps have to meet the federal lighting standard, FMVSS 108, and many states write that standard into their own vehicle codes. That's why the setup matters more than the power level. A factory xenon system keeps its certification when you replace parts like-for-like, so a 35W ballast and the correct bulb in a factory xenon headlight is the compliant route.

A conversion is different. NHTSA has said that an HID conversion set can't comply with the standard in a headlamp designed for a halogen bulb, because the arc sits in a different place than the filament the reflector was built around, as explained in its interpretation letter on HID conversion sets. That holds at 35W and at 55W. A 55W setup in the same headlight adds more glare on top, since the arc is bigger.

Which Ballast Should You Choose?

Choose 35W if:

You drive daily and want the bulbs to reach their rated life
You have a factory or OEM-style xenon headlight
You want the lowest heat and the lightest load on your wiring
You care about a clean, even beam without glare for other drivers

Think carefully before choosing 55W if:

Your headlight has plenty of room, airflow, and heat-tolerant parts
You're prepared for shorter bulb life and a color that may shift
You've confirmed the ballast truly delivers its rated power and your wiring can take the load
The vehicle is for off-road or show use, not public roads

What types of HID ballast are there?

Standard ballast: the usual aftermarket choice for HID kits, with AMP connectors.
Slim ballast: a smaller case for tight spaces behind the headlight or in the bumper. Slim doesn't mean more power, so check the actual wattage.
CANbus ballast: built for cars that monitor the headlight circuit or send pulsed power to the lights. It helps prevent flicker, bulb-out warnings, and unexpected shutoffs. Our CANbus HID ballast handles pulsed signals up to 100 Hz and is rated down to minus 40 degrees.
OEM-style D1S and D3S ballasts: direct replacements for failed factory units.

Also confirm the output type. HID bulbs run on alternating current, and our bulbs are AC powered, so match an AC ballast to an AC bulb.

How Long Do HID Ballasts Last?

A good ballast lasts for years, and most are retired because of heat, moisture,e or voltage spikes rather than age. How many years varies with build quality. Our CANbus ballast tends to last 3 to 5 years and carries a one-year warranty, and some quality and OEM units run longer, up to around 10 years in good conditions.

What shortens a ballast's life:

Heat from a tight mounting spot or from running more than 35 watts
Water getting in, especially if the case isn't fully potted
Vibration from loose mounting
Voltage spikes from a weak battery, a bad alternator, or poor connections
Cheap internal parts, the main reason low-priced kits fail early

How Do You Know If an HID Ballast Is Bad?

These are the usual warning signs:

One headlight is dark, flickers,s or cuts out after it's been on a while
A slow start, or lights that need several tries to come on
Dim light compared with the other side
A buzzing or clicking sound
A color change, such as a pinkish glow
A dashboard bulb-out warning or a blown fuse
Burn marks, bulging, ng or damage on the ballast case

Swap the two bulbs side to side to tell the bulb from the ballast. If the problem follows the bulb, it's the bulb. If it stays on the same side, check that side's ballast and igniter. A flickering bulb is often the first sign of a bulb wearing out, according to Rick's Free Auto Repair Advice, and turning the headlight switch off and on resets a ballast that has shut down.

We only sell 35W ballasts, because we think that's the best fit for road-going cars. Here's where each of ours fits:

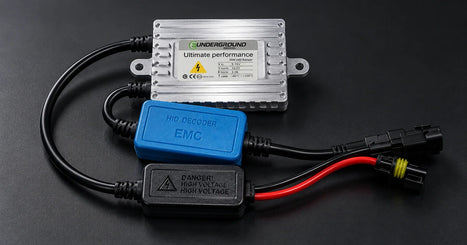

Canbus HID Ballast, 35W: the universal pick for HID kits and aftermarket setups, with AMP connectors and no relay needed on most cars.
Aftermarket D1S Ballast, 35W: a replacement for failed factory D1S systems.
Aftermarket D3S Ballast, 35W: a replacement for failed factory D3S systems.
D2H HID CANbus Kit, 35W: bulbs, ballasts and igniters in one box.

Need a bulb to go with the ballast? Browse our HID bulbs and HID conversion kits.

35W vs 55W Ballasts: The Short Version

A ballast starts the xenon arc, then holds the bulb at steady power. Every HID bulb needs one.
35W is the factory standard and the safest choice for road-going cars.
A 55W ballast can add some light, but with more heat and current, a shorter bulb life and a color that may drift. Many 55W ballasts also deliver less than their rating.
Wattage doesn't decide legality. The whole headlight has to meet the federal standard, and a halogen-to-HID conversion doesn't.
Match the ballast to the bulb family first, then to the connector and mounting.
Expect a quality ballast to last several years, and swap bulbs side to side to tell a bad bulb from a bad ballast.

Not sure which ballast fits your car? Call (561) 918-5225 or use the vehicle search on any product page, and we'll confirm the fit before you order.
