The main difference is where the igniter lives and how much voltage the bulb runs on. D1S bulbs have the igniter built into the base and run on 85 volts. D2S bulbs use a separate igniter and also run on 85 volts. D4S bulbs use a separate igniter like the D2S but run on 42 volts and contain no mercury. The D3S is the D1S's mercury-free, 42-volt counterpart. All four put out about the same light, so the right one is whichever your headlight and ballast were built for.
That last part is where most buying mistakes happen. These bulbs look alike, but the bases, voltages, and ballasts are different, and a bulb from the wrong family either won't fit or won't light. This guide explains what each letter and number means, compares the bulbs head to head, covers what you can and can't swap, and helps you pick a replacement.

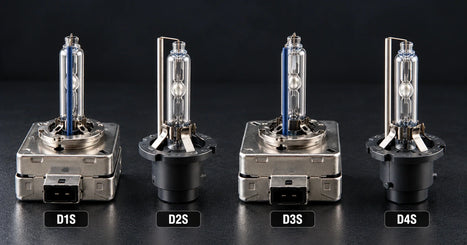

- D1S: igniter built into the base, 85 volts, contains mercury, PK32d-2 base
- D2S: separate igniter, 85 volts, contains mercury, P32d-2 base
- D3S: igniter built into the base, 42 volts, mercury-free, PK32d-5 base
- D4S: separate igniter, 42 volts, mercury-free, P32d-5 base
- Typical OEM output: all four are rated around 3,200 lumens at 35 watts, based on Osram's published specs
- S vs R: S bulbs are for projector headlights and R bulbs are for reflector headlights
What Do D1S, D2S, D3S and D4S Mean?
Every code follows the same pattern, so once you can read one, you can read them all.
- D stands for discharge. The bulb makes light with an electric arc through xenon gas, not a filament.
- The number (1, 2, 3, or 4) is the generation and tells you two things. Odd numbers (1 and 3) have the igniter built into the bulb base. Even numbers (2 and 4) need a separate igniter. Numbers 1 and 2 are the older 85-volt mercury designs, and 3 and 4 are the newer 42-volt mercury-free designs.
- The last letter says what optics the bulb is built for. S means shielded and is for projector headlights, where a shield inside the projector forms the beam cutoff. R means reflector and is for reflector headlights, where a painted mask on the glass does that job instead. C is an aftermarket label for a bulb sold to fit either.
So a D4S is a mercury-free, 42-volt bulb with a separate igniter, built for a projector. A D1R is an 85-volt bulb with the igniter built in, built for a reflector.
How Do You Know Which Bulb Your Car Uses?
Pull the original bulb and read the code on its base. That's the most reliable method, because owner's manuals and parts catalogs sometimes list the wrong type. Beyond that:
- Look at the base. A D1S or D3S has a bulky base with the igniter built in. A D2S or D4S has a slim base with a round connector that clips on separately.
- Look at the glass. A clear capsule means an S-type bulb. A dark painted stripe means an R-type.
- Check the housing. A round lens inside the headlight means a projector, so look for an S bulb. A bare chrome bowl means a reflector, so look for an R bulb. Check out projector vs reflector headlights for a quick visual test.
- Check the ballast. A D1 or D3 ballast has a cable that plugs into the bulb's igniter base. A D2 or D4 ballast has a separate igniter box.
- Use a fitment tool. Enter your year, make, and model in the vehicle search on any of our product pages.
What cars use D1S, D2S and D4S bulbs?
There's no rule by brand, and the bulb type can change with the model year and trim, so confirm with your own bulb. As general examples, D4S bulbs are used on HID-equipped Toyota Sienna, Avalon, and Venza models and on the Lexus GS, according to published fitment data from bulb sellers. D2S is common on 2000s-era xenon models from brands like Acura, BMW, and Infiniti, and D1S shows up on many Audi and BMW headlights.
The 2011 Toyota Sienna question comes up a lot. HID-equipped trims of that van use D4S, and trims with halogen headlights don't take any xenon bulb at all.
D1S vs D2S: What's the Difference?
Both run at 85 volts, and both contain mercury, so their light is nearly identical. The difference is the igniter. A D1S has it built into the base, which makes the bulb bulkier and gives it a different connector. A D2S has none, so a separate igniter box on the ballast side does the starting. That also gives the two bulbs different bases, PK32d-2 for the D1S and P32d-2 for the D2S, so they don't physically swap.
For a D1S, the simplest replacement is another D1S. If you're moving from a D1S to a D2S for retrofit reasons, you'll need a different ballast or an adapter that adds the missing igniter.
D2S vs D4S: What's the Difference?
The D4S is the mercury-free update of the D2S. Both use a separate igniter, but the D4S runs at 42 volts instead of 85. That changes the electronics on the ballast side, and the bases are different too: P32d-5 for the D4S and P32d-2 for the D2S.
Output is essentially the same. Osram rates its OEM Xenarc Original D2S and D4S at 35 watts and 3,200 lumens, plus or minus 15 percent, with a B3 life of 2,000 hours. You'll see forum posts claiming one is brighter, but in factory form the rating is the same. Differences in real-world brightness come from the bulb brand, its age, and the ballast, not the family.
The practical rule is that a D2S needs a D2 ballast and a D4S needs a D4 ballast. Running one on the other's ballast either won't light or will overload the bulb.
D1S vs D3S and D2S vs D3S
Bright, crisp true-white D3S HID Xenon light on a 2014 Jeep Grand Cherokee.
The D3S is the mercury-free version of the D1S, with the igniter in the base like its older sibling but running at 42 volts instead of 85. Osram rates the OEM D3S at the same 3,200 lumens and 35 watts as the D1S.
The volt difference is the real compatibility barrier. A D3S can't run on a D1 ballast, and a D1S can't run on a D3 ballast, because the igniter inside each bulb is built for its own voltage. The same logic applies to D2S vs D3S. They differ in igniter location and in voltage, so they're a no-swap pair.
D4S vs D4R, D1S vs D1R and D2S vs D2R
The last letter has nothing to do with electronics. It tells you what kind of headlight the bulb belongs in.
- S bulbs have clear glass and are for projector headlights, where a shield inside the projector shapes the beam.
- R bulbs have a painted mask on the glass that blocks light from hitting parts of a reflector it shouldn't, which is what keeps the beam from blinding oncoming drivers.
Swapping them backward creates real problems. An S bulb in a reflector housing throws unmasked light across the whole reflector and produces glare. An R bulb in a projector gets part of its light blocked by its own mask. Always match the letter. Our D2S vs D2R guide covers that pair in more depth.
Where Do D5S and D2H Fit?
D5S is a newer, lower-power 25-watt design on a different base, used by some recent factory systems.
D2H isn't a factory type at all. It's an aftermarket D2S-style bulb with wire leads in place of the socket, made for retrofits. We explain it in our D2H bulb guide.
Can You Swap D1S, D2S, D3S and D4S Bulbs?
Only within the same family, and usually only like-for-like. Three things have to match: the base, the voltage, and the igniter setup.
- D1S for D1S, D2S for D2S, D3S for D3S, D4S for D4S. This is the clean replacement, and it keeps your headlight working the way the automaker certified it.
- 85-volt bulbs (D1, D2) and 42-volt bulbs (D3, D4) can't share a ballast. Mixing them either leaves the bulb dark or pushes too much voltage into it.
- Built-in igniter (D1, D3) and separate igniter (D2, D4) change the connector. The bulb, the cable, and the ballast all have to agree.
Can you convert D1S to D2S?
Sometimes, in a retrofit. Igniter adapters exist that add the missing igniter to a D1 ballast so it can power a D2 bulb. This is something installers do when they're rebuilding a projector, and the adapter is matched to the ballast voltage, so a D1 ballast can drive a D2 bulb and a D3 ballast can drive a D4 bulb, but not across the two groups. If you're not changing the projector and your original setup works, leave it alone and replace like for like.
Can you put a D2S in a D4S headlight, or the other way around?
No. The bases differ, and so does the ballast voltage. A D2S needs 85 volts and a D4S needs 42, so neither works on the other's ballast.
Can you use an aftermarket ballast with these bulbs?
Yes, with the right output. Aftermarket HID ballasts usually have AMP connectors, so a D2S needs an AMP-to-D2 adapter to plug in, which is the problem the wire-lead D2H bulb was designed to remove. Our HID ballast collection lists standard and CANbus options.
D1S, D2S and D4S Specs: Brightness, Color and Lifespan
Bright, crisp D1S Xenon HID headlight delivering excellent nighttime visibility and clean white beam.How Bright Are They?
Factory specs are the same across the family. Osram's OEM D1S, D2S, D3S and D4S bulbs are all rated at 35 watts and 3,200 lumens, plus or minus 15 percent. Osram says that's up to twice the light of a standard halogen bulb in the same position, and our own D2S pair is rated at about 3,300 lumens.
Two things to keep in mind when you compare listings. Ballast power matters as much as the bulb, since the ballast decides how much power the arc gets, so a bulb's rated lumens only show up on a ballast that can drive it. A higher-wattage setup also adds heat, which can wear out the bulb and projector faster, so 35 watts is the safer choice for a daily driver.
Which Color Temperature Should You Choose?
Kelvin measures color, not brightness. Factory bulbs are about 4,100 to 4,300K, which is a warm natural white.
- 4300K: factory color and the most usable light in rain and fog
- 5000K: neutral white that looks cleaner than aged factory bulbs
- 6000K: crisp, cool white and the most popular aftermarket pick
- 8000K: a blue-white look chosen mostly for style, with no brightness benefit
For a car driven on public roads, we'd stay between 4300K and 6000K. Our D1S, D2S, and D3S bulbs come in 6000K and 8000K, and a 5000K Extreme White is available for the D2S and D3S.
How Long Do They Last?
Osram rates its OEM D1S, D2S, and D4S at a B3 life of 2,000 hours and a Tc life of 3,000 hours, with the D3S rated to 4,000 hours. B3 is the point where 3 percent of bulbs have failed, and Tc is where 63.2 percent have. For a daily driver at a few hundred hours a year, that works out to many years, but aftermarket bulbs vary, so treat those numbers as a benchmark, not a promise.
A bulb that's near the end shows it. The light drifts toward pink or purple, it flickers or takes longer to light, or one side looks dimmer than the other. Replace both bulbs together so color and brightness stay matched.
Which Bulb Should You Buy?
Buy the exact family your headlight uses. Here's where each of ours fits:
- D1S bulbs: for projectors with a built-in igniter and an 85-volt ballast. Browse D1S xenon HID bulbs.
- D2S bulbs: the most common projector bulb. See the D2S, D2R and D2H bulbs.
- D3S bulbs: for 42-volt, mercury-free systems with a built-in igniter. See the D3S xenon bulbs.
- D4S bulbs: for 42-volt, mercury-free systems with a separate igniter, including HID-equipped Toyota Sienna and Avalon models. See the D4S xenon bulbs.
Not sure which one you have? Call (561) 918-5225 or use the vehicle search on any product page, and we'll confirm the fit before you order.
D2S LED Bulbs vs Xenon: Should You Switch?
For a car that came with xenon, we'd stay with xenon. LED bulbs made to look like D1S, D2S, or D4S bulbs exist, and they light instantly with no warm-up. The trouble is optics. A projector is designed around a xenon arc, which glows in every direction from one tiny point. Most LED replacements put their chips on two flat faces of a board, so the projector gets light from a different shape and position than it expects. The result can be dark patches, a softer cutoff, or extra glare above the line.
There's a legal side too. In a February 2024 letter, NHTSA's Chief Counsel said no LED light source is currently permitted as a replacement bulb in a replaceable-bulb headlamp. Factory LED headlamps are fine, but a drop-in LED in a headlamp built for xenon isn't a certified setup.
If your goal is simply to fix a dim, aging headlight, a fresh pair of the correct xenon bulbs usually restores the original brightness and beam.
Are D1S, D2S and D4S Bulbs Street Legal?
In a factory xenon headlight, yes. D1S, D2S, D3S, and D4S are standardized light sources, so the automaker certifies the whole headlamp around them. Replacing a bulb with the same type keeps that certification intact.
Two habits keep you legal. Stay with white light, since 8000K and above looks blue and invites attention, and aim the headlights after a change so the cutoff sits low.
Read more details about Texas headlight laws and legalities.
D1S vs D2S vs D4S: The Final Vedict
- D1S and D3S have the igniter built into the bulb. D2S and D4S need a separate igniter.
- D1S and D2S run at 85 volts and contain mercury. D3S and D4S run at 42 volts and are mercury-free.
- Factory output is about 3,200 lumens at 35 watts for all four.
- S is for projector headlights, and R is for reflector headlights. Always match the letter.
- The bases and voltages differ, so the bulbs aren't interchangeable. Replace like for like.
- Replace both bulbs together, keep the color white, and stay with xenon in a factory xenon headlight.
